Rewriting Home Assistant Long-term statistics from InfluxDB

In an earlier post, I made an error that incorrectly aggregated the energy data which resulted in hugely inflated aggregated energy usage. All the un-aggregated data was accurate, but the sums were wrong. Luckily I had all the raw data stored in InfluxDB and could rebuild it.

In this post, I walk through how to re-write the Home Assistant Long-term statistics database to fix this mistake.

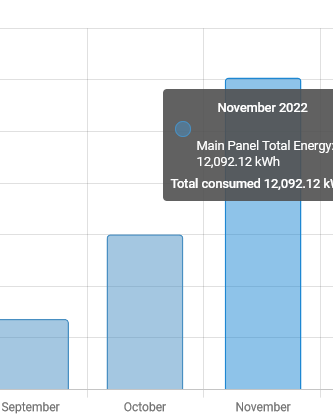

A grossly high electric bill

First, I opened up the Influx UI and constructed a query to generate the corrected metrics. The HA database requires two fields: sum and state. One describes the cumulative running sum, and the other is the sum at the end of the hour. I didn’t fully understand how sum differed from state, so I just assumed they were the same.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
from(bucket: "energy-1h")
  |> range(start: -365d, stop: now())
  |> filter(fn: (r) => r["_measurement"] == "kWh")
  |> filter(fn: (r) => r["_field"] == "value")
  |> filter(fn: (r) => r["domain"] == "sensor")
  |> filter(fn: (r) => r["entity_id"] != "main_panel_total_energy" and r["entity_id"] != "sub_panel_32_total_power" and r["entity_id"] != "daily_electricity_usage")
  |> group(columns: ["_measurement", "_field"])
  |> aggregateWindow(every: 1h, fn: sum, createEmpty: false)
  |> cumulativeSum()
  |> yield(name: "mean")

I ran this query, then clicked download to CSV.

That gave me a file that looked like the following:

1
2
3
4
5
6
#group,false,false,true,true,false,false,true,true,true,true
#datatype,string,long,dateTime:RFC3339,dateTime:RFC3339,dateTime:RFC3339,double,string,string,string,string
#default,mean,,,,,,,,,
,result,table,_start,_stop,_time,_value,_field,_measurement,domain,entity_id
,,0,2022-08-01T06:08:15Z,2022-12-01T07:08:15.162Z,2022-08-21T09:00:00Z,2.569999999999993,value,kWh,sensor,main_panel_total_energy
,,0,2022-08-01T06:08:15Z,2022-12-01T07:08:15.162Z,2022-08-21T10:00:00Z,1.7900000000000063,value,kWh,sensor,main_panel_total_energy

Delete first 3 lines and one of the two trailing lines.

1
$ tail -n+4 '2022-11-30_23 38_influxdb_data.csv' | head -n-1 > influxdata.csv

Make sure the file is nearby on the host running HomeAssistant, then stop HA and open up the file:

1
2
3
# sqlite3 home-assistant_v2.db
SQLite version 3.31.1 2020-01-27 19:55:54
Enter ".help" for usage hints.

I looked at my target table schema:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
sqlite> .schema statistics
CREATE TABLE statistics (
  id INTEGER NOT NULL,
  created DATETIME,
  start DATETIME,
  mean FLOAT,
  min FLOAT,
  max FLOAT,
  last_reset DATETIME,
  state FLOAT,
  sum FLOAT,
  metadata_id INTEGER,
  PRIMARY KEY (id),
  FOREIGN KEY(metadata_id) REFERENCES statistics_meta (id) ON DELETE CASCADE
);
CREATE UNIQUE INDEX ix_statistics_statistic_id_start ON statistics (metadata_id, start);
CREATE INDEX ix_statistics_start ON statistics (start);
CREATE INDEX ix_statistics_metadata_id ON statistics (metadata_id);

Then import the CSV file into the database

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
sqlite> .mode csv
sqlite> .import "../influxdata.csv" influx
sqlite> .schema statistics
sqlite> .schema influx
CREATE TABLE influx(
  "" TEXT,
  "result" TEXT,
  "table" TEXT,
  "_field" TEXT,
  "_measurement" TEXT,
  "_start" TEXT,
  "_stop" TEXT,
  "_time" TEXT,
  "_value" TEXT,
  "domain" TEXT,
  "entity_id" TEXT,
  "state" TEXT
);

Now we’re reading to replace the data. First, find the id of the entity to replace. The first column will be the id

1
2
3
4
sqlite> select * from statistics_meta where statistic_id = 'sensor.main_panel_total_energy';
1,sensor.main_panel_total_energy,recorder,kWh,0,1,

sqlite> delete from statistics where metadata_id = 1;

Then insert the data and drop the temp table

1
2
3
sqlite> insert into statistics select null AS id, datetime(_time) as created, datetime(_time, '-1 hour') as start, null as mean, null as min, null as max, null as last_reset, cast(_value as float) as state, cast(_value as float) as sum, 1 as metadata_id from influx;

sqlite> drop table influx;

Then delete the history for the energy_cost because at the end of the next hour, HA will distort the metrics again:

1
sqlite> delete from states where entity_id = 'sensor.main_panel_total_power' or entity_id = 'sensor.main_panel_total_energy' or entity_id = 'sensor.main_panel_total_energy_cost';

Home Assistant stores some intermediary data in the statistics_short_term table. This may cause problems and I’ve had to delete those records sometimes

1
sqlite> delete from statistics_short_term where metadata_id = 1;

Then open home-assistant/.storage/core.restore_state and change the entry for main_panel_total_energy to match the latest value from InfluxDB.

Restart Home Assistant.

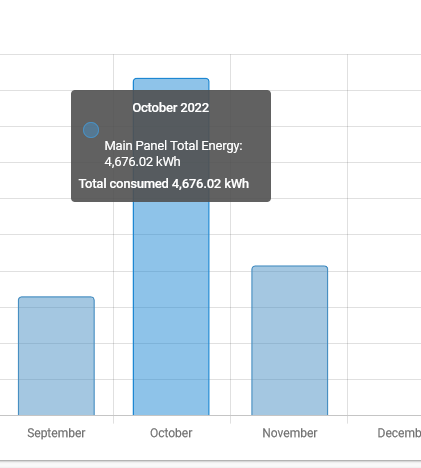

Voilà. The data is corrected:
